HAND-HELD HEAT STAKING PENCIL
FOR THERMOPLASTIC ASSEMBLY
The only heat staking device of its kind. Designed for low volume production runs and lab testing.
Interchangeable tips allow for a universe of processes. The PAS heat staking pencil can be used for..
• Staking
• Insertion
• Embossing
• Date coding
• Swaging
• Film/fabric sealing
Features & Specifications
- 1 Year Warranty
- Insulated Aluminum Handle
- Built-In Post Cooling Valve
- Thumb Actuated Post Cooling
- Complete Probe Assembly
- Steel Probe Body with 1/4-28 Tapped Face
- 120VAC Helix Heater
- Integral J-type Thermocouple
- 48" Leads
- Probe Assembly Heater Sock

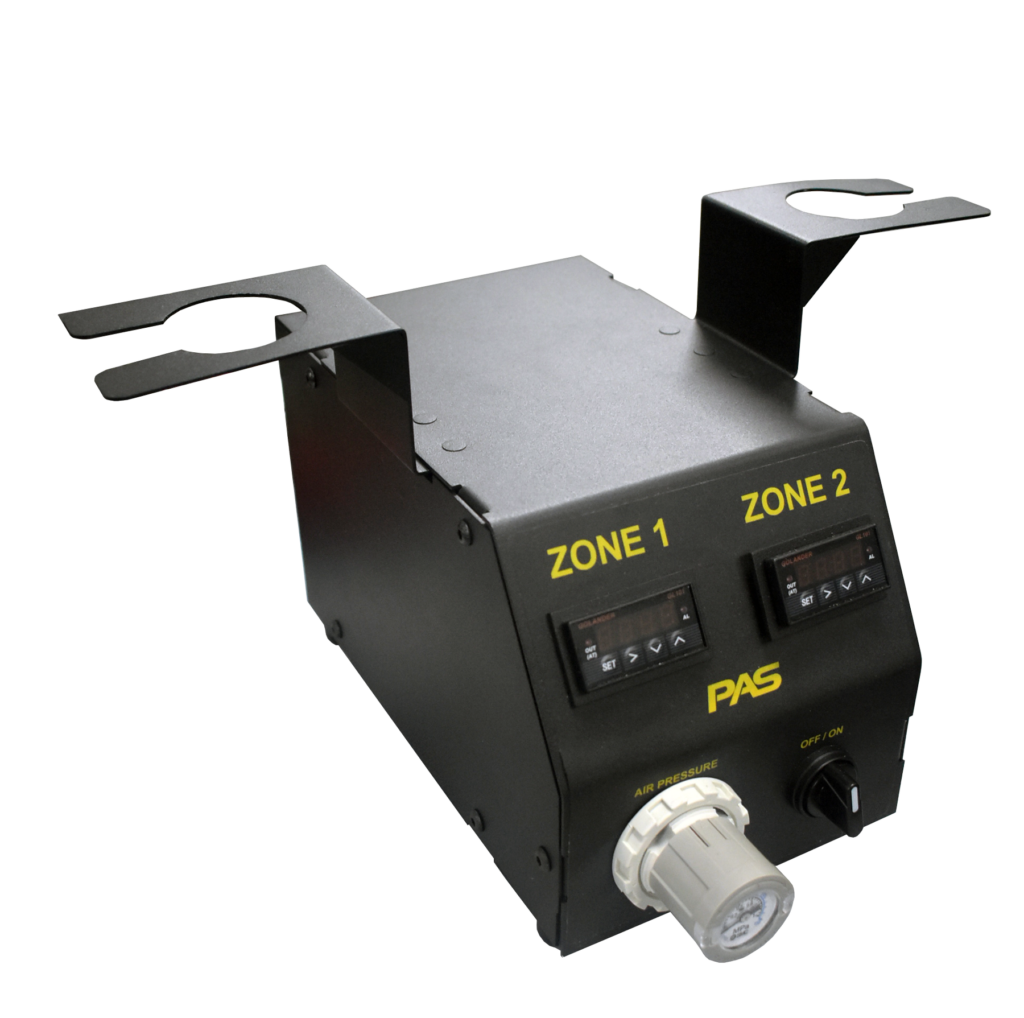

Multi Tool Hand-Held
Heatstaking Station
- 2 temperature controllers with 2 outputs
- 1 auxiliary amp connector with in temp dry contact
- Main on/off switch
- Main fuse
- 2 SSR heater relays
- Air regulator for pressure regulating post cooling
- 2 tool mounts
Single Tool Hand-Held
Heatstaking Station
Heatstaking Station
- 1 temperature controller with 2 outputs
- 1auxiliary amp connector with in temp drycontact
- Main on/off switch
- Main fuse
- 1 SSR heater relays
- Air regulator for pressure regulating post cooling
- 1 Tool Mount
